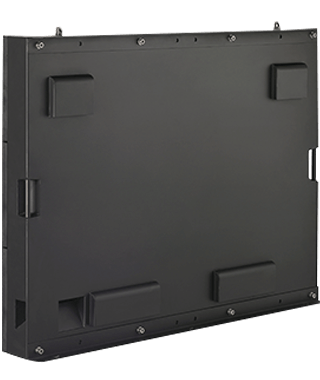

Genesis Hybrid HD Series
A revolutionary design in outdoor LED displays. Fan-less and lightweight design, using innovative fast locking modules and a front access component bay makes service hassle free.

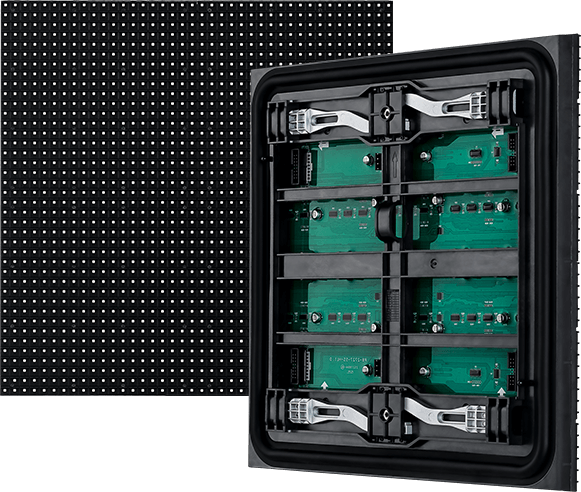

Genesis SMD Module
Fully enclosed fast locking modules protect your investment by sealing out the elements while keeping the components cool. Heat dissipating rear fins allow heat to be transferred away for longer life expectancy over traditional PCB design.
Superior SMD Brightness
Dakco custom designed SMD LED’s boasting a 10,000 Nits brightness level far surpasses the industry standard for outdoor LED displays. True vivid color reproduction @ 3840Hz, makes Dakco a leader in Outdoor SMD innovation.
Brilliant & Reliable
Super Bright Display With Anti-Glare Louvres
Color Consistency Eliminates Mosaic Effect
IP65 Protection For All Environments
Withstands Low -20F And High Temps 170F
Synchronous Or Asynchronous Software Card
Plug And Play Operation Factory Certified
Web-Based Monitoring Diagnostic & Control
Great Looking & Long Lasting
“Gold wire-bonding” is what we always insist when select LEDs for producing outdoor LED displays. MEANWELL PSU, temperature sensing cooling fans are also adopted for high reliability and longevity. Heavy-walled, solidly-built, and thick powder-coated Aluminum cabinet is adopted to provide the excellent corrosion resistance.
Silicone Gel Sealed Module
Silicone gel is sealed on both sides of LED modules to prevent oxidation of components and solder joints etc.
All Outdoor Installations
You may want to install led display on pole, on wall, on roof, or even embed it into a structure – the Prime Series is always good choice.
Single Pole
Double Pole
Hanging
Embedded
Wall
Roof
Flag
Mobile
Front Service
With gear-driven fastener mechanism, the Prime Series can be accessed to service from the front panel with ease.
Custom Sizes & Shapes
The cabinet width and height can be customized to any size between 320mm and 2560mm, to achieve the closest screen size. And it can be customized to curve, arc (concave, convex), circle, round, angled, cube etc. shapes to realize your creative ideas.
Curved, Arc (Concave, COnvex), Circle, Round
Angled, Cube
Creative IDeas
All Resolutions
The pixel pitch covers 4.8mm, 6.67mm, 8mm, 10mm, which can satisfy all the requirements on mid-high resolutions.
4.8mm 250x250mm
6.67mm 320x320mm
8mm 320x320mm
10mm 320x320mm
| LED Package Type | SMD | SMD | SMD |
| Pixels Per Sq. Foot (Density) | 2,090 | 1,452 | 929 |
| Module Dimensions | (320mm x 320mm) | (320mm x 320mm) | (320mm x 320mm) |
| Module Matrix | 48x48 | 40x40 | 32x32 |
| Module Weight | 1.4 KG | 1.4 KG | 1.4 KG |
| Driving Method | 1/6 constant current | 1/4 constant current | 1/2 constant current |
| Refresh Rate | ≥3,840 Hz | ≥3,840 Hz | ≥3,840 Hz |
| Video Frame Rate | 60 frames/second | 60 frames/second | 60 frames/second |
| Grayscale | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) |
| Color Depth | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 3,000 : 1 | 3,000 : 1 | 3,000 : 1 |
| Brightness | ≥6,500 NITS | ≥6,500 NITS | ≥6,500 NITS |
| Brightness Control | 256 levels | 256 levels | 256 levels |
| Ideal Viewing Range | 18’ or greater | 22’ or greater | 28’ or greater |
| Ideal Viewing Angle | 160°(H) / 120°(V) | 160°(H) / 120°(V) | 160°(H) / 120°(V) |
| Max. Power Consumption | 750W/m² | 750W/m² | 750W/m² |
| Avg. Power Consumption | 250W/m² | 250W/m² | 250W/m² |
| Input Voltage | 88 ~ 264VAC | 88 ~ 264VAC | 88 ~ 264VAC |
| Ingress Protection | IP67 front / IP55 rear | IP67 front / IP55 rear | IP67 front / IP55 rear |
| Operating Temperature | -40 ℉ – +140℉ (-40 ℃ – +60 ℃) | -40 ℉ – +140℉ (-40 ℃ – +60 ℃) | -40 ℉ – +140℉ (-40 ℃ – +60 ℃) |
| MTBF | >5,000 hours | >5,000 hours | >5,000 hours |
| LED Life - Span | 100,000 hours | 100,000 hours | 100,000 hours |
| Cabinet Size | Custom | Custom | Custom |
| Cabinet Material | Aluminum | Aluminum | Aluminum |
| Cabinet Weight | 38 KG/m² | 38 KG/m² | 38 KG/m² |
